How does a folding oil filter element compare to a cartridge - type oil filter?

As a supplier of folding oil filter elements, I've witnessed firsthand the growing demand for efficient oil filtration solutions in various industries. In this blog post, I'll delve into the comparison between folding oil filter elements and cartridge - type oil filters, exploring their respective features, advantages, and applications.

Structure and Design

Folding oil filter elements are characterized by their unique folded structure. The filter media is folded into a pleated shape, which significantly increases the surface area available for filtration within a relatively small space. This design allows for a higher dirt - holding capacity and better filtration efficiency. For example, our Stainless steel folded lubricating oil filter element ERA32NCC 1.0015G25 - A00 - 0 - M utilizes a high - quality stainless - steel filter media that is precisely folded to maximize the filtration area.

On the other hand, cartridge - type oil filters typically consist of a cylindrical filter element enclosed in a housing. The filter media in cartridge filters is usually in a more straightforward, non - folded form. While this design is simple and easy to install, it may have a relatively lower surface area compared to folding filter elements of the same size.

Filtration Efficiency

The increased surface area of folding oil filter elements directly contributes to their superior filtration efficiency. With more area available for the oil to pass through, the filter can capture a larger amount of contaminants, including dirt, metal particles, and sludge. The pleated design also allows for a more uniform flow of oil through the filter media, reducing the risk of bypass and ensuring that a higher percentage of contaminants are removed from the oil.

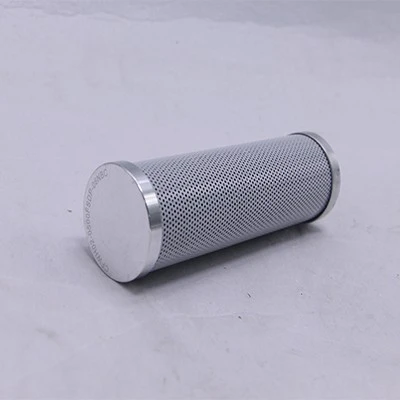

Cartridge - type oil filters can also provide effective filtration, but their performance may be limited by the available surface area. In applications where high - precision filtration is required, such as in hydraulic systems, folding oil filter elements often outperform cartridge - type filters. For instance, our Hydraulic Station Oil Pump Filter 0030D005BN4HC is designed to meet the strict filtration requirements of hydraulic systems, removing even the smallest particles to ensure smooth operation.

Dirt - Holding Capacity

Dirt - holding capacity is an important factor in determining the lifespan of an oil filter. Folding oil filter elements, with their larger surface area, can hold more contaminants before reaching their saturation point. This means that they can operate for longer periods without the need for frequent replacement, reducing maintenance costs and downtime.

Cartridge - type oil filters, due to their relatively smaller surface area, may reach their dirt - holding limit more quickly. As a result, they may need to be replaced more frequently, especially in applications with high levels of contaminants. This can increase the overall cost of filtration over time.

Pressure Drop

Pressure drop is the difference in pressure between the inlet and outlet of a filter. A lower pressure drop is generally desirable, as it indicates that the filter is not restricting the flow of oil too much. Folding oil filter elements tend to have a lower pressure drop compared to cartridge - type oil filters. The pleated design allows for a more efficient flow of oil through the filter media, minimizing the resistance to flow.

In cartridge - type filters, the non - folded filter media may create more resistance to the oil flow, resulting in a higher pressure drop. This can put additional strain on the oil pump and other components in the system, potentially reducing their lifespan.

Cost - Effectiveness

When considering cost - effectiveness, both the initial cost and the long - term operating cost need to be taken into account. Folding oil filter elements may have a slightly higher initial cost compared to cartridge - type oil filters. However, their longer lifespan, lower maintenance requirements, and better filtration performance often make them a more cost - effective choice in the long run.

The need for more frequent replacement of cartridge - type oil filters can add up to significant costs over time. Additionally, the potential damage to other components in the system due to poor filtration can also result in expensive repairs.

Applications

Folding oil filter elements are widely used in a variety of applications, including hydraulic systems, lubrication systems, and engine oil filtration. Their high filtration efficiency and dirt - holding capacity make them suitable for applications where clean oil is crucial for the proper functioning of equipment. For example, our Hydraulic oil return filter element HHT14F32CSTB6 is specifically designed for use in hydraulic oil return lines, ensuring that the oil is clean before it re - enters the system.

Cartridge - type oil filters are commonly used in less demanding applications, such as in some automotive engines and small machinery. Their simple design and ease of installation make them a popular choice for these types of applications.

Conclusion

In conclusion, folding oil filter elements offer several advantages over cartridge - type oil filters, including higher filtration efficiency, greater dirt - holding capacity, lower pressure drop, and better long - term cost - effectiveness. While cartridge - type oil filters may be suitable for some less demanding applications, folding oil filter elements are the preferred choice for applications where high - performance filtration is required.

If you are in the market for high - quality oil filtration solutions, I encourage you to consider our range of folding oil filter elements. Our products are designed and manufactured to the highest standards, ensuring reliable performance and long - lasting durability. Whether you need a filter for a hydraulic system, a lubrication system, or an engine, we have the right solution for you. Contact us today to discuss your specific requirements and explore how our folding oil filter elements can meet your needs.

References

• "Filtration Handbook", by Christopher D. Metcalfe
• "Hydraulic Systems and Components", by Thomas G. Beckwith
